ITC POWER Diesel Stromaggregat Full Power 8 KVA DG7800SE-T 230V/400V

Item number: IPDG7800SE-T

  • with AVR voltage regulator
  • with electric starter
  • 400 V and 230 V
Maße: 52 x 92 x 76 cm (B x L x H)

Category: Diesel Stromerzeuger


1.999,90 €

including 16% VAT. , plus shipping

Shipping time: 52 - 55 workdays

Available from: 14.12.2020 (Pre-order is possible)
piece

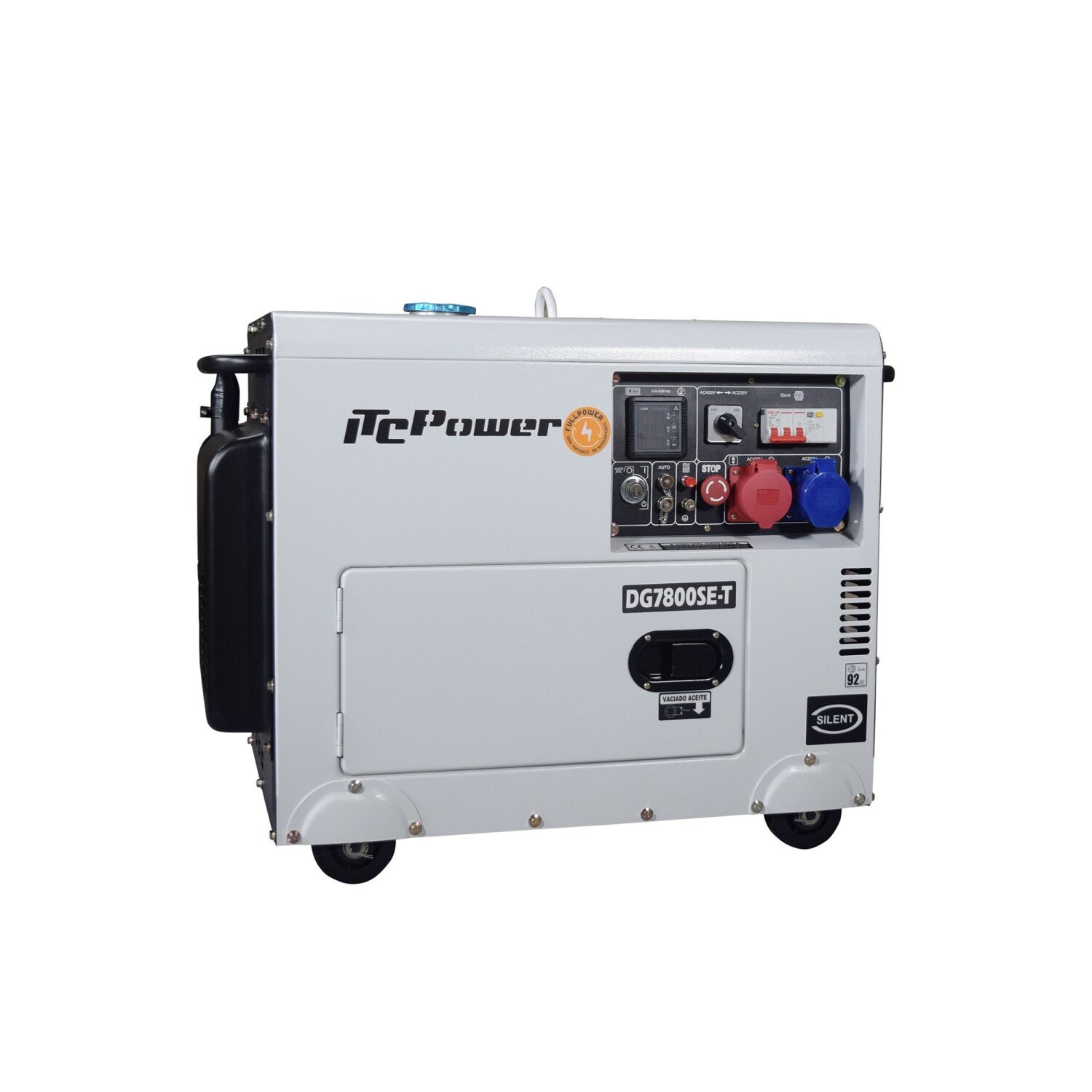

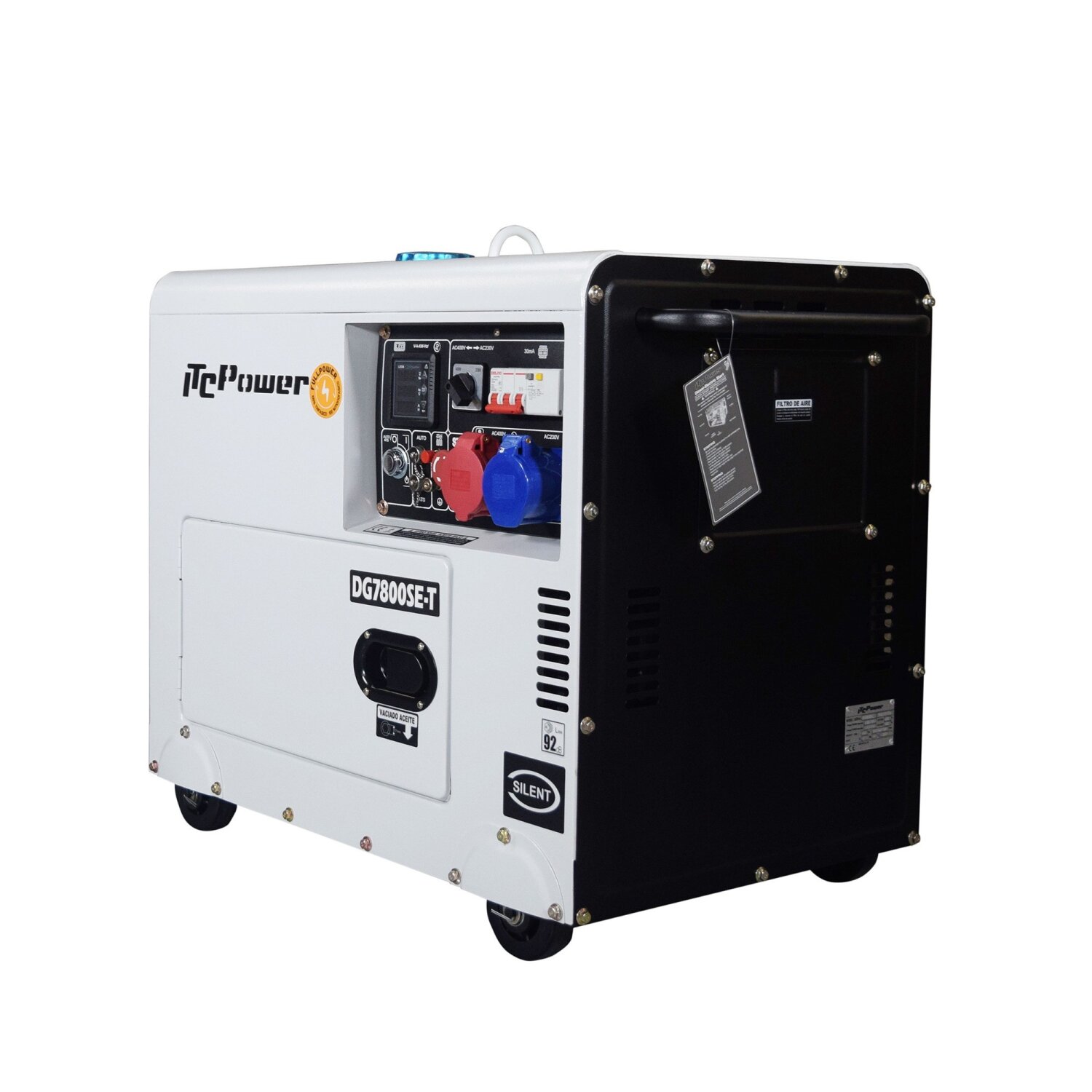

Diesel generator ITC-POWER DG7800SE-T


400V device with full power on 230V

  • with AVR voltage regulator
  • with electric starter
  • 400 V and 230 V

Ideally suited for your building site or for home security - Emergency power supply for the home
AVR voltage regulator ensures constant voltage, so you can operate sensitive electronics

  • 4-stroke diesel engine with direct injection
  • Large tank
  • The cladding ensures a low noise level

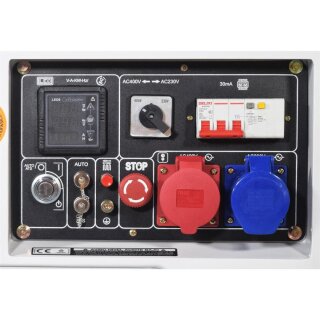

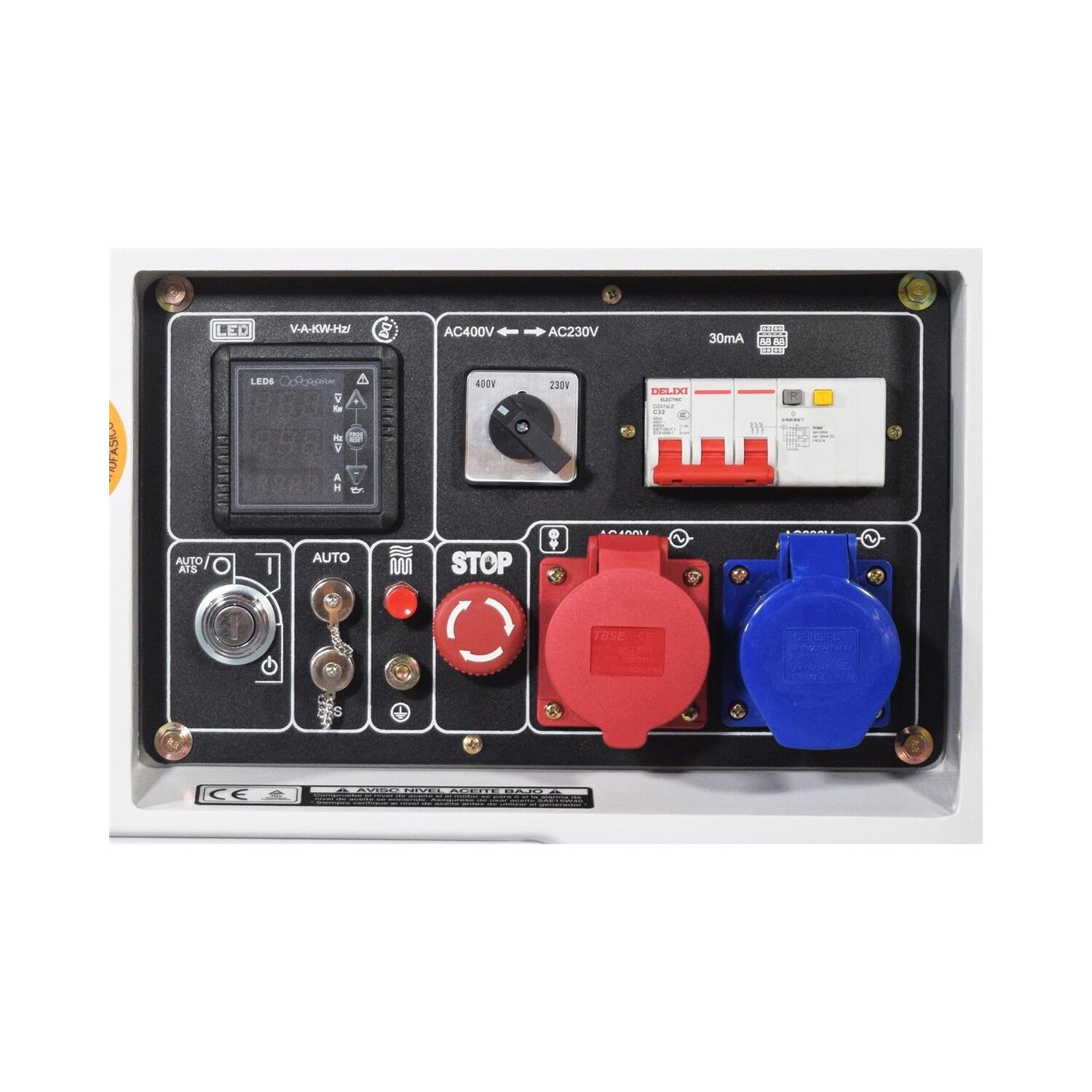

  • The digital display ensures you many monitoring possibilities
  • overload protection
  • Oil shortage protection
  • LED display
  • 1 x 400V socket 16AMP (the big red one)
  • 1 x 230 V socket 32AMP (the big blue one)
  • earth protection
  • With ATS connection

Technical data:

  • frequency 50 Hz
  • Voltage 400 V / 230V full power on 230V and on 400V
  • Nominal power on 230V 6 KW / on 400V 7,5 kVA
  • maximum power on 230V 6,3 KW / on 400V 7,9 kVA
  • FI circuit breaker
  • Display LED6
  • tank capacity 14 litres
  • Independent working time at 50 % load 13 hours
  • Volume 73dB at 7 meters
  • battery 36 Ah
  • motor D500E
  • Power of the engine 12,0 PS
  • displacement 498 cc
  • oil capacity 1.65 litres
  • Generator A6T 100% copper
  • electric starter, battery included
  • AVR voltage regulator
  • speed 3,000 rpm
  • dimensions 920x520x760 mm
  • gross weight 167 Kg

The generator is supplied on wheels.


Shipping weight: 170,00 Kg
Product weight: 167,00 Kg
