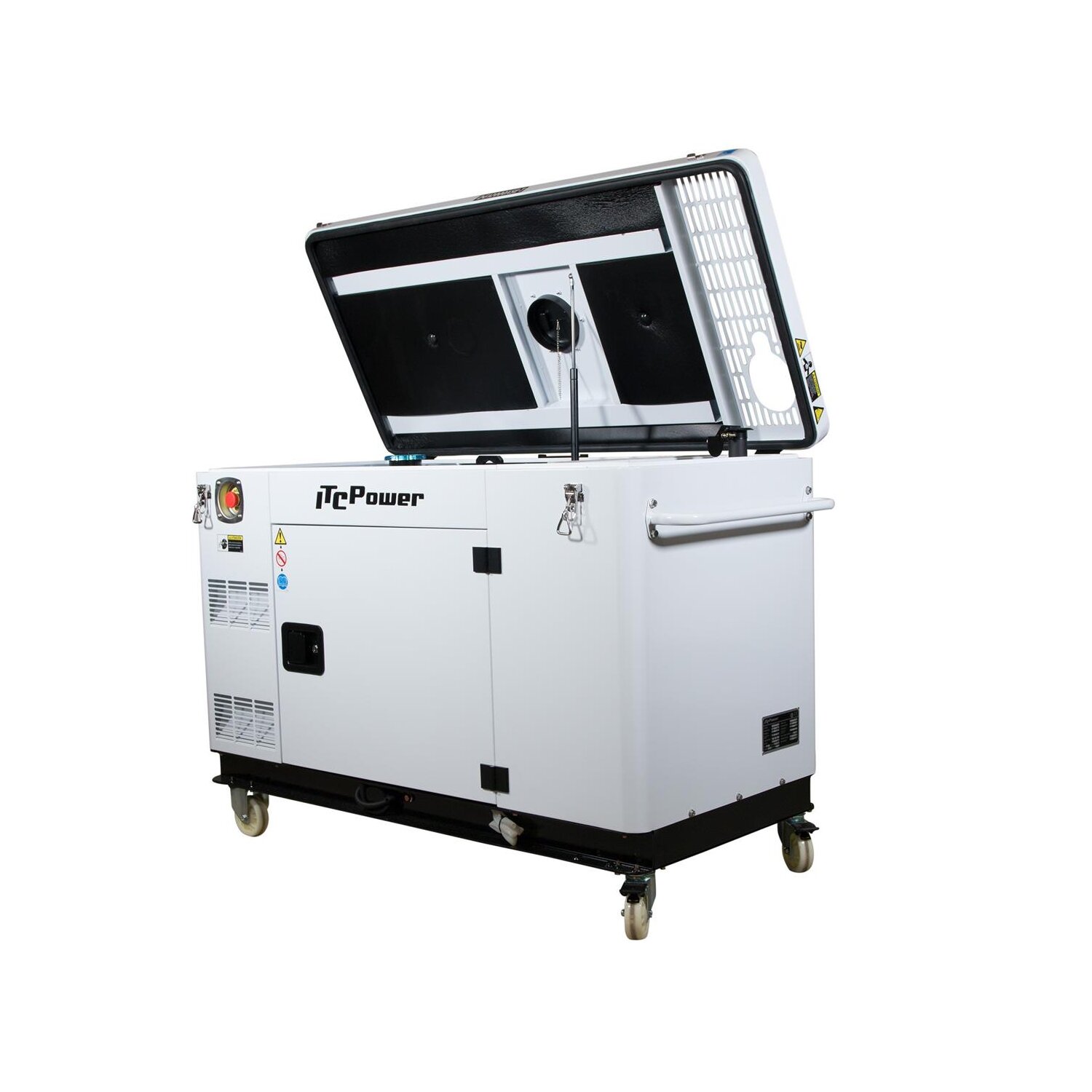

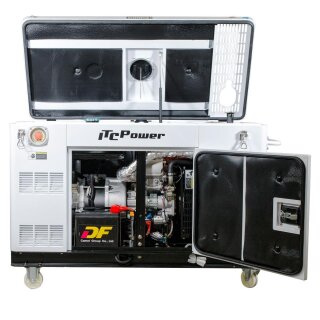

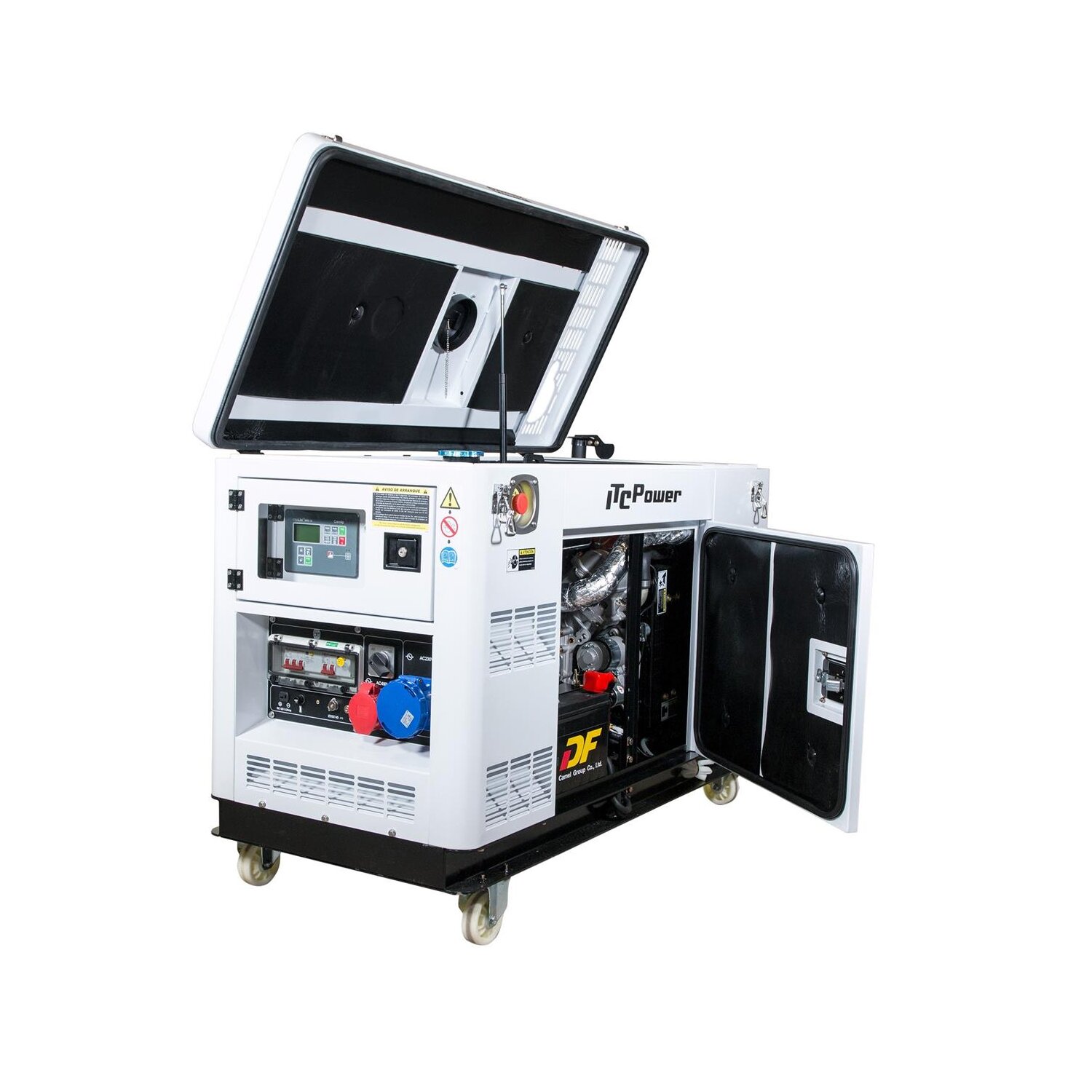

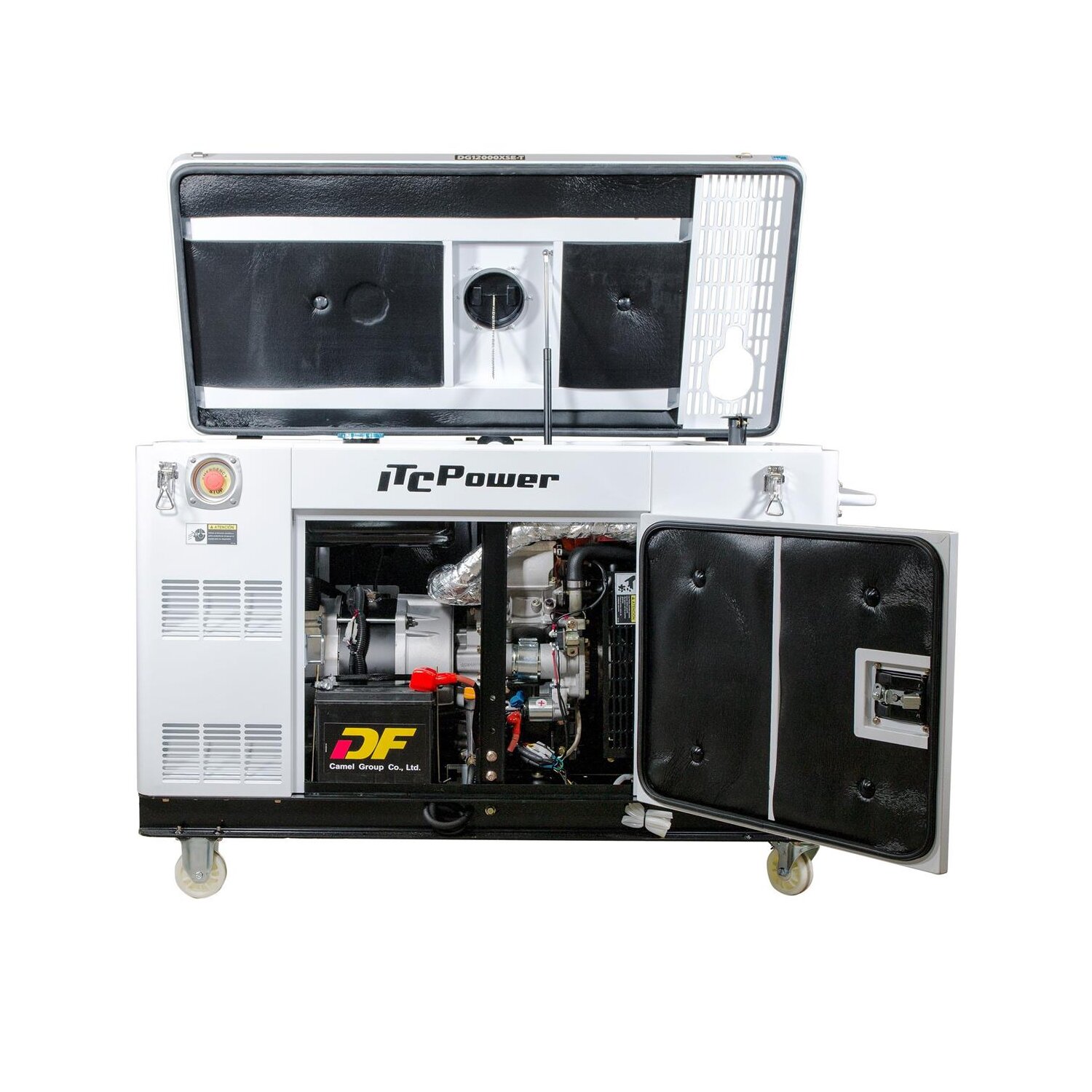

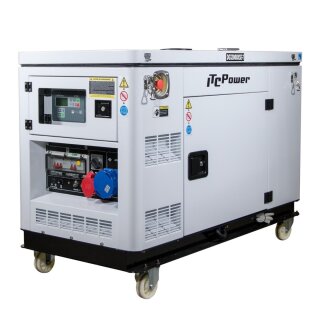

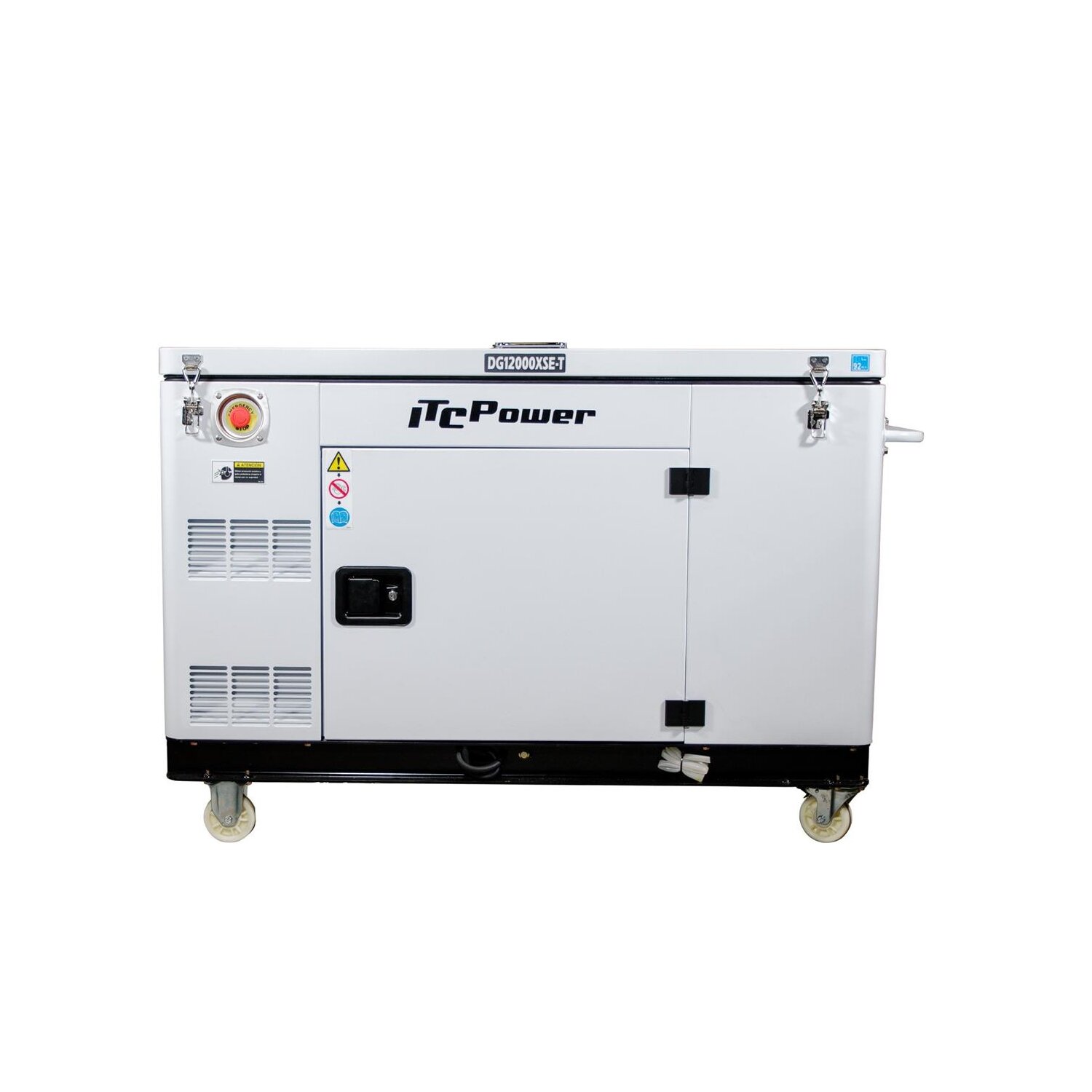

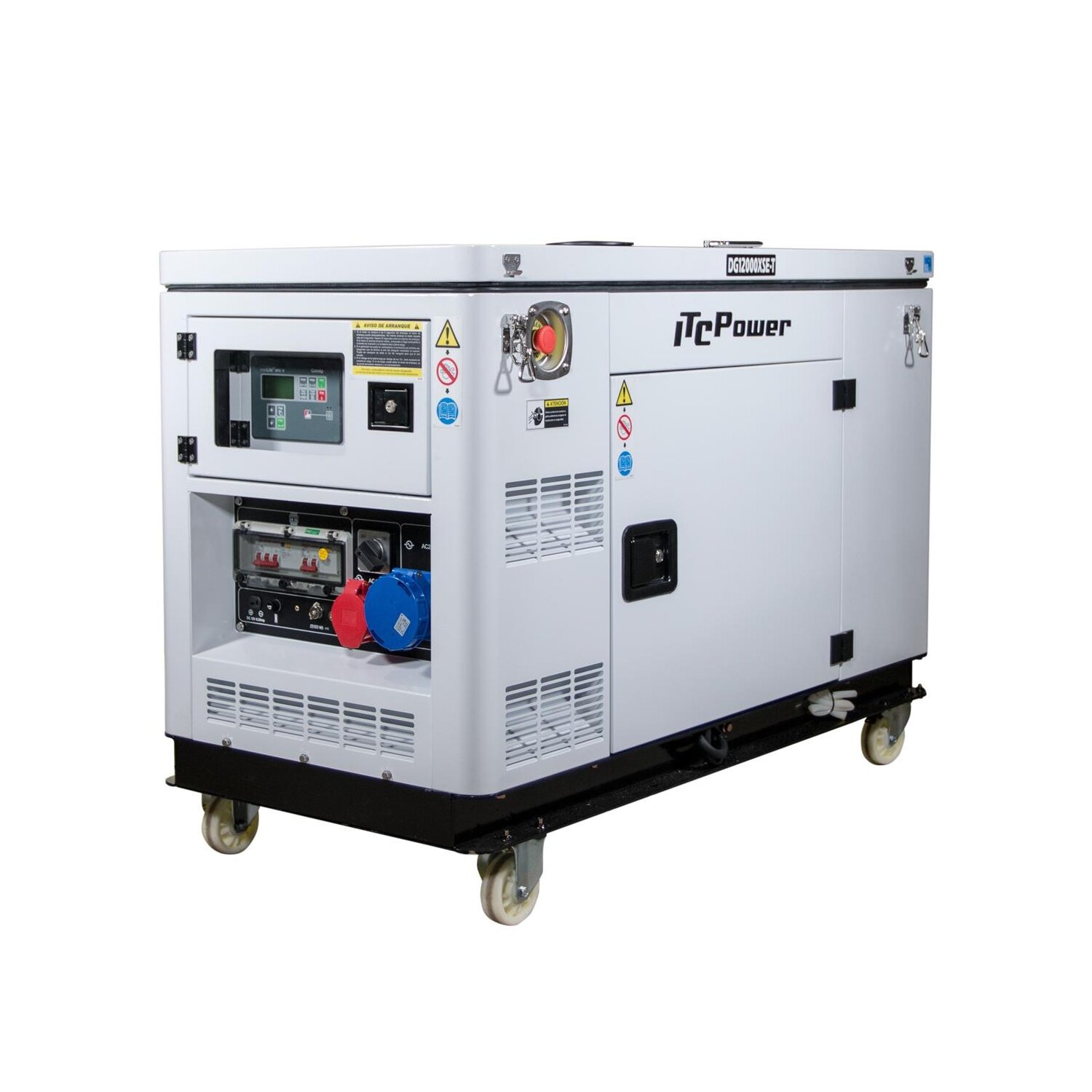

ITC POWER Stromaggregat Diesel 12,5 KVA DG12000XSE-T Wassergekühlt

Item number: IPDG12000XSE-T

EAN: 8435528104237

Maße: 70 x 141 x 101.5 cm (B x L x H)

Category: Diesel Generators

6.849,99 €

including 19% VAT. , plus shipping

Shipping time: 1 - 4 workdays

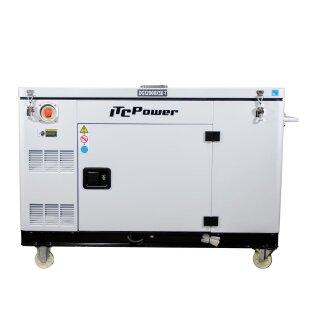

Diesel power unit ITC-POWER 12,5 kVA DG12000XSE-T

-with water cooling
-with AVR voltage regulator
-with electric starter
-with wheel kit

Ideally suited for your construction site or for house security!
-4 stroke diesel engine with direct injection and water cooling
-Large tank

-The cladding ensures a low noise level
-The digital display ensures you many monitoring possibilities
-overload protection
-Oil shortage protection

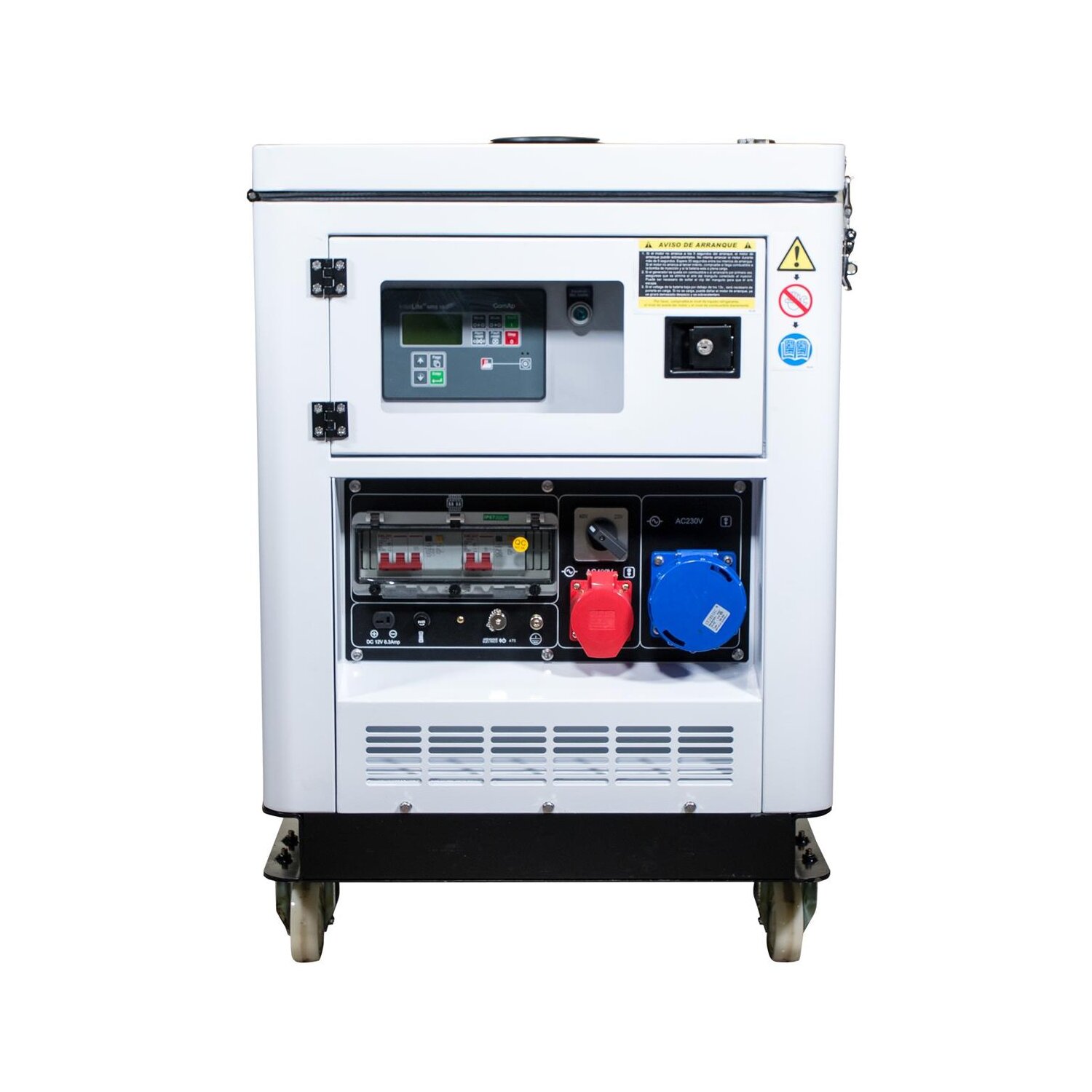

-LED display multifunction (KW, Volt, AMP, Hz, hour meter)
-fuse with 30 mA for personal safety

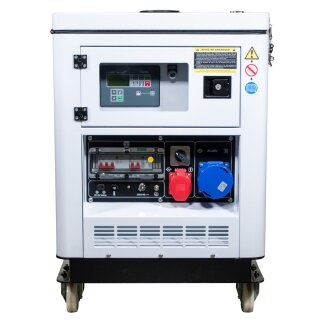

-1 x 230 V 63 A socket
-1 x 400 V 32 A socket
-12V output with 8.3 A
-earth protection
-With ATS connection

AVR voltage regulator ensures constant voltage, so you can also operate sensitive electronics.
The 63 A socket allows you to draw all the power from one outlet. This makes this unit well suited for larger current collectors or for house fuse protection.

Technical data:
-frequency 50 Hz
-voltage 230 and 400V
-nominal power 11,4 kVA to 400V and 9 KW to 230V (400V and 230V cannot be used at the same time, but by means of a switch it is possible to switch between them)
-Maximum power 12,5 kVA at 400V and 10 KW at 230V
-Ampere 43,48 A
-Digital multifunctional display
-Tank capacity 30 litres
-Independent working time at 100% load 7 hours, consumption at 100% power approx. 4.2 litres
-Volume 78 dBA at 7 metres
-12 V output / 8.3 A
-battery 45Ah
-motor EV80, V2 motor
-Power of the engine 16,0 PS
-displacement 794cc
-oil capacity 2.27 litres
-Generator KTS-10
-electric starter, battery, wheels included
-AVR voltage regulator
-speed 3,000 rpm
-dimensions 1410x700x1015 mm
-gross weight 360 Kg, net 318 Kg

The generator is supplied on wheels.
All spare parts in stock.

Shipping weight: 330,00 Kg
Product weight: 318,00 Kg
