WARRIOR 6,25 KVA SILENT DIESEL GENERATOR 3 PHASE

Item number: WWLDG6500SV3-EU

  • New Modell 2020
Maße: 91 x 74 x 53 cm (B x L x H)

Category: WARRIOR Dieselgenerators


1.549,99 €

including 19% VAT. , plus shipping

Old price: 1.599,99 €

Shipping time: 4 - 7 workdays

piece

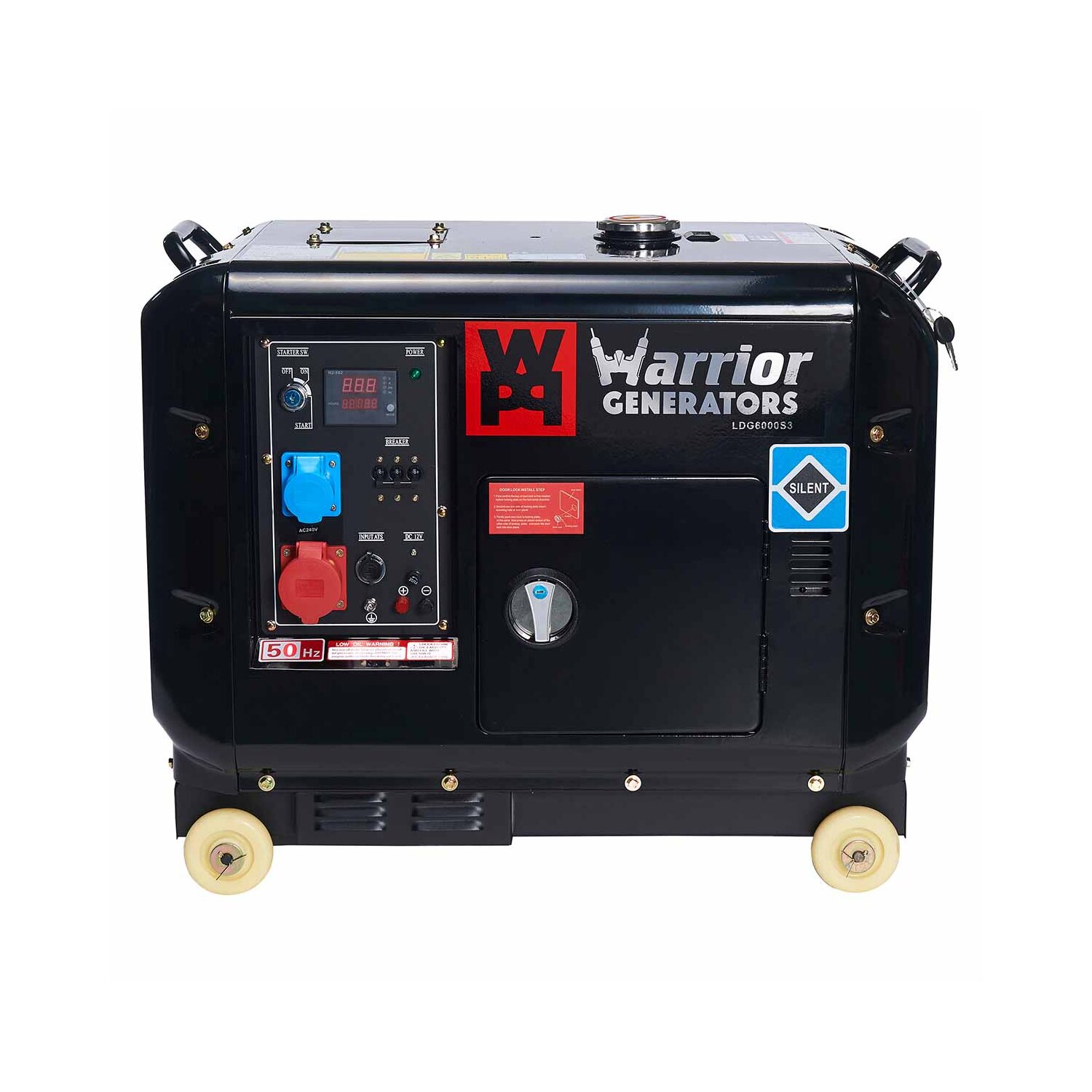

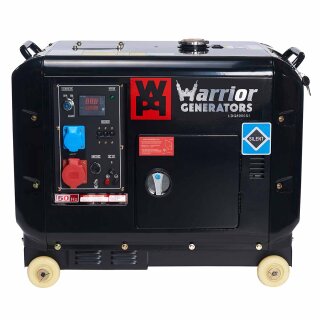

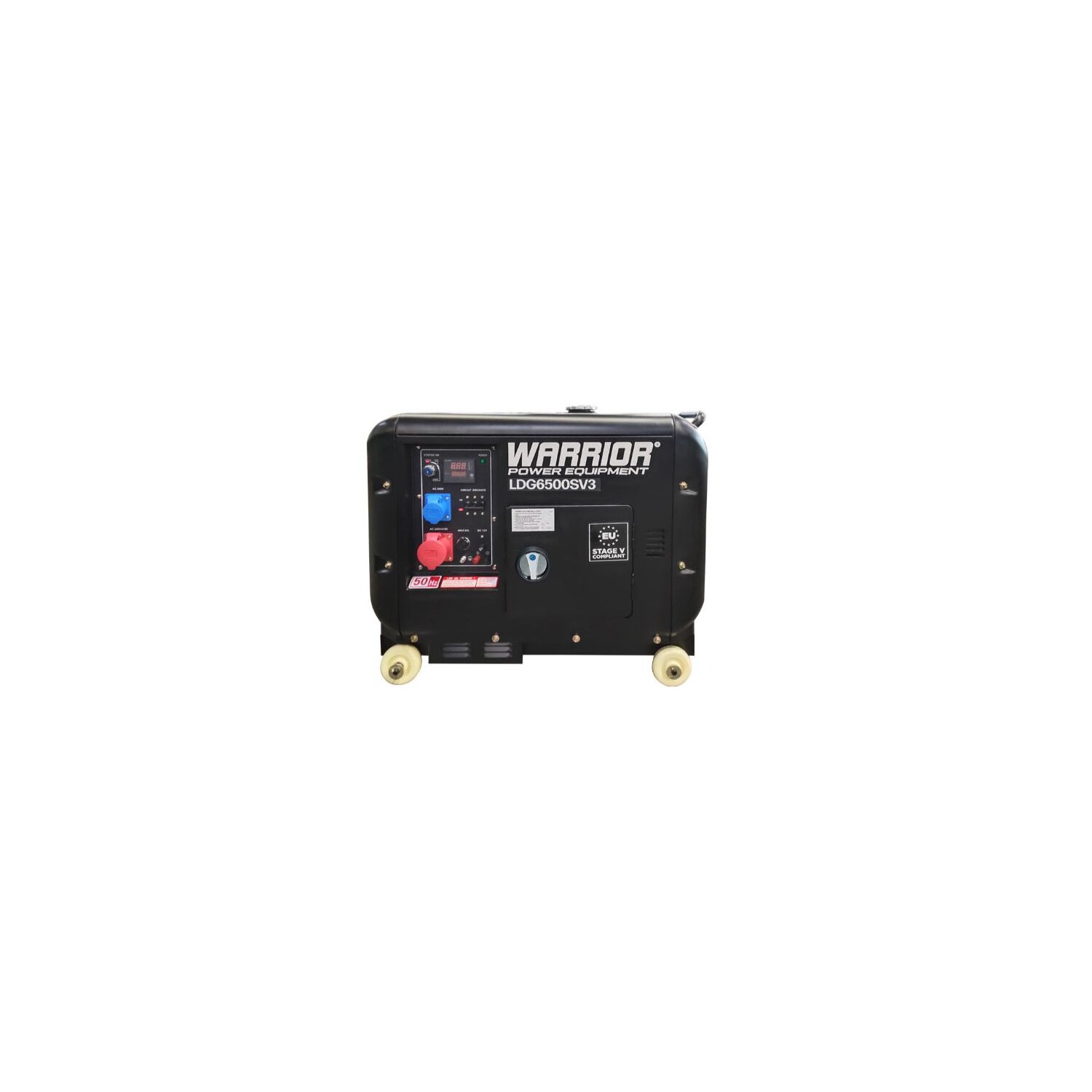

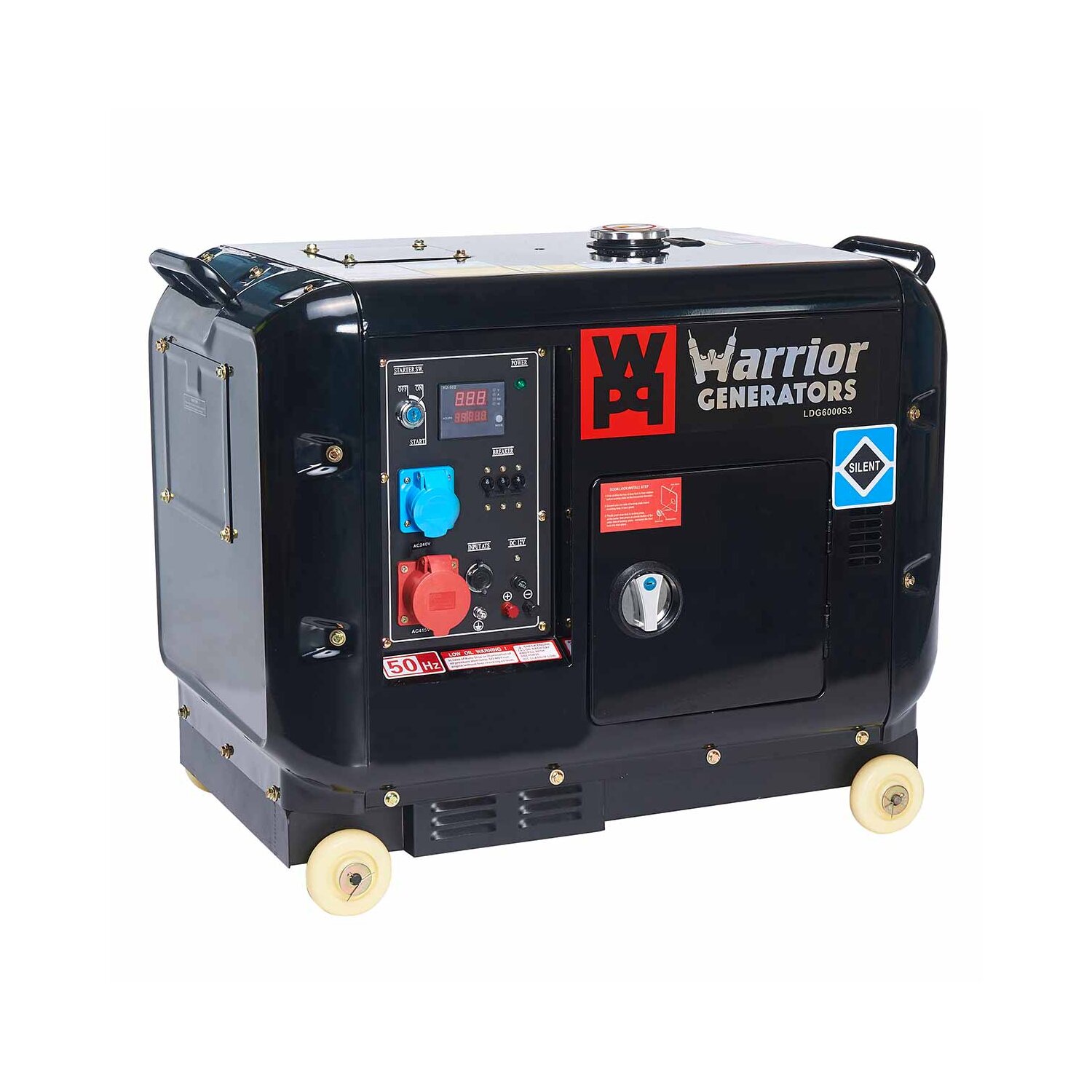

WARRIOR Diesel Silent Generator 6,25 kVA 230V/400V



This new and improved Warrior model boasts increased power and a fully compliant EU5 standard engine, with a brushed copper alternator within that produces a steady motor speed.

It features a Automatic Voltage Regulator (AVR) control system to monitor the output and protect the unit against voltage fluctuations, providing a smoother sine wave.

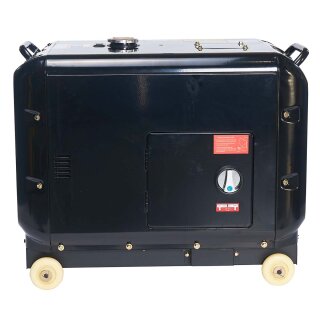

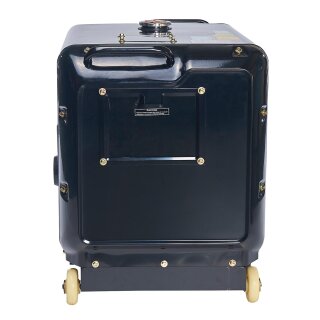

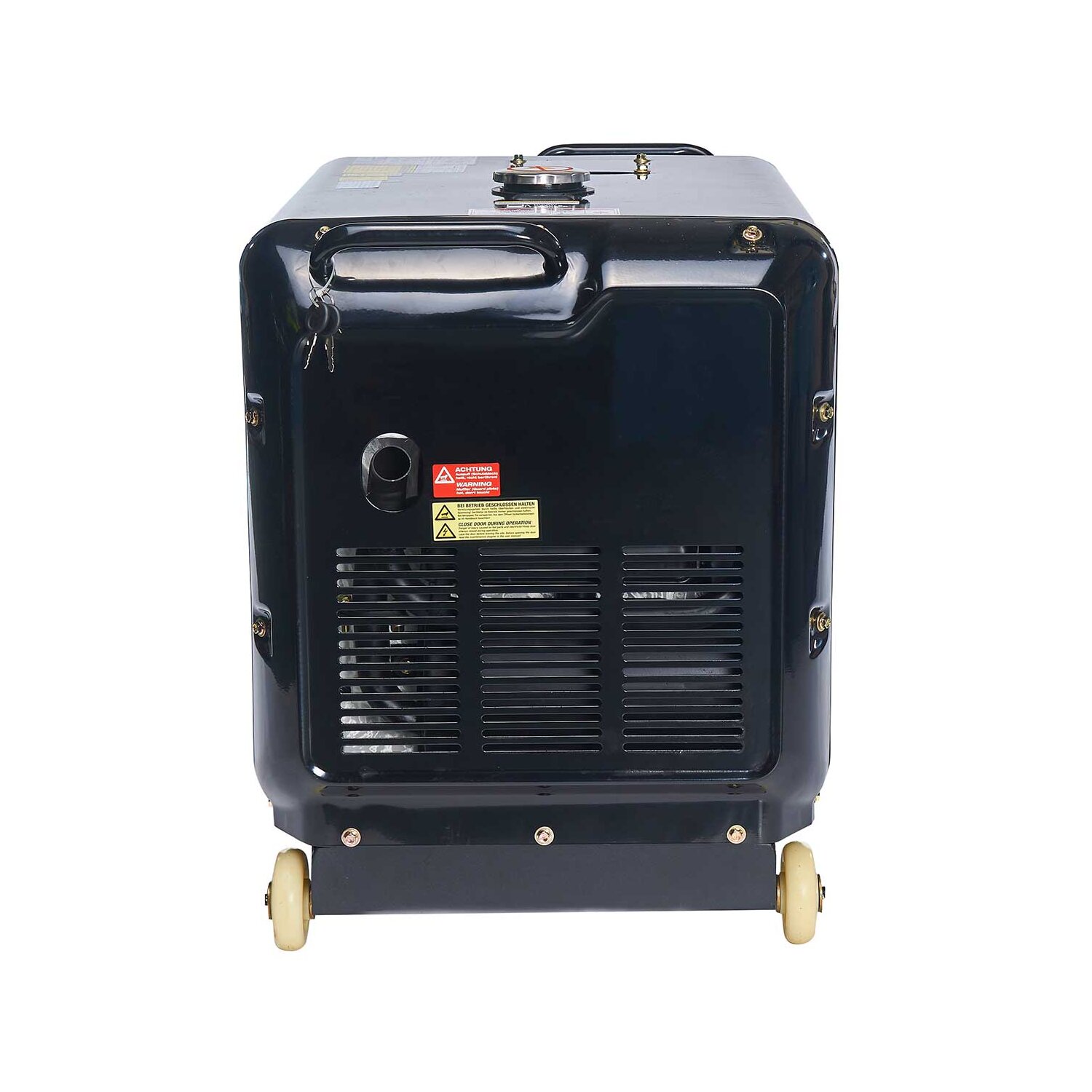

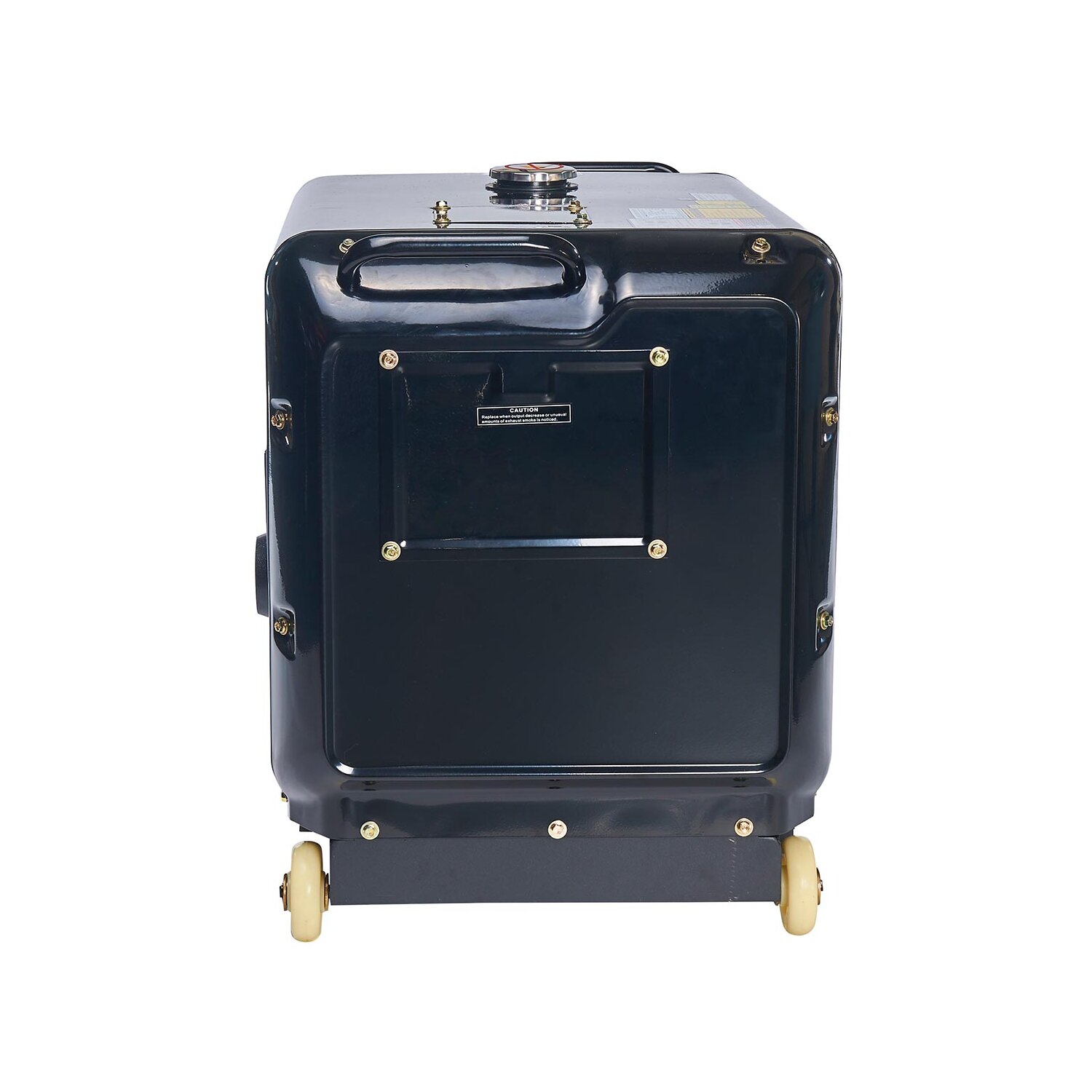

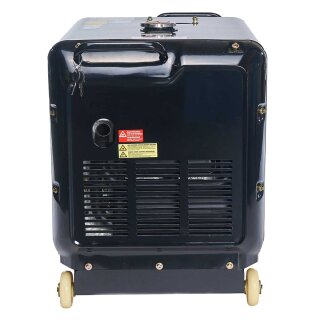

Enclosed by a soundproof canopy, coated with a chip resistant matt finish, the durable heavy-duty industrial frame provides full protection and aids portability. This silent enclosure has the added benefit of a key start facility and smooth running is further enhanced by the addition of anti-vibration mountings.

A fully fuelled 16 litre tank could easily achieve up to 12 hours running at around 50% load, making this Warrior generator ideal for all sorts of applications such as domestic supply, construction, catering and industrial use with for example power tools & lighting units. As a standby generator it is the perfect product during power cuts and outages, and is even supplied with an Automatic Transfer Switch (ATS) Input Port compatible with our ATS Panel to automatically start up the Generator when loss of power is detected & stop it when the mains supply is restored.

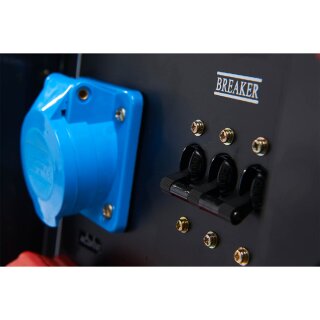

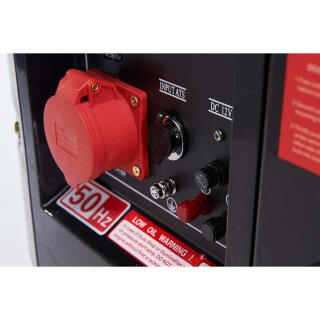

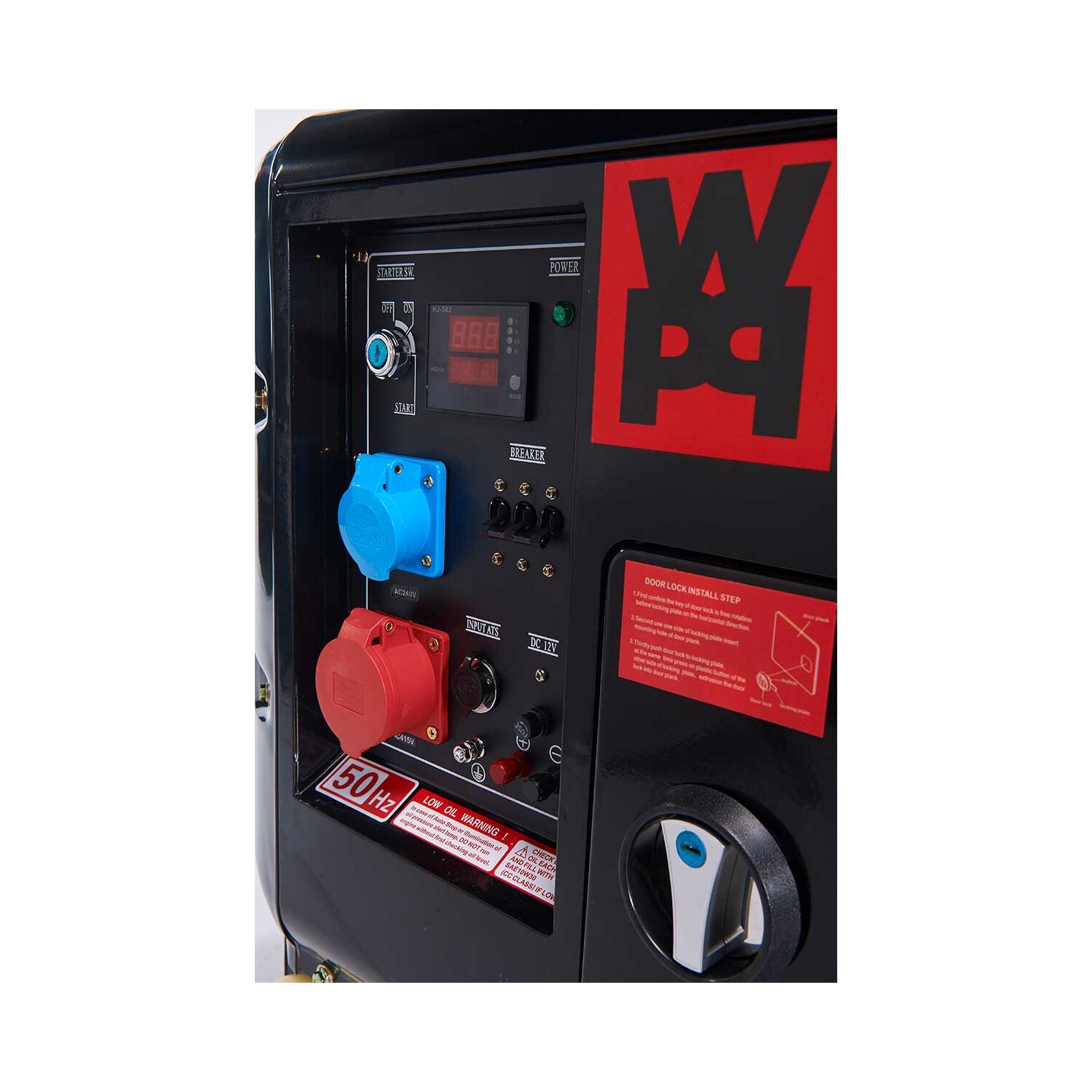

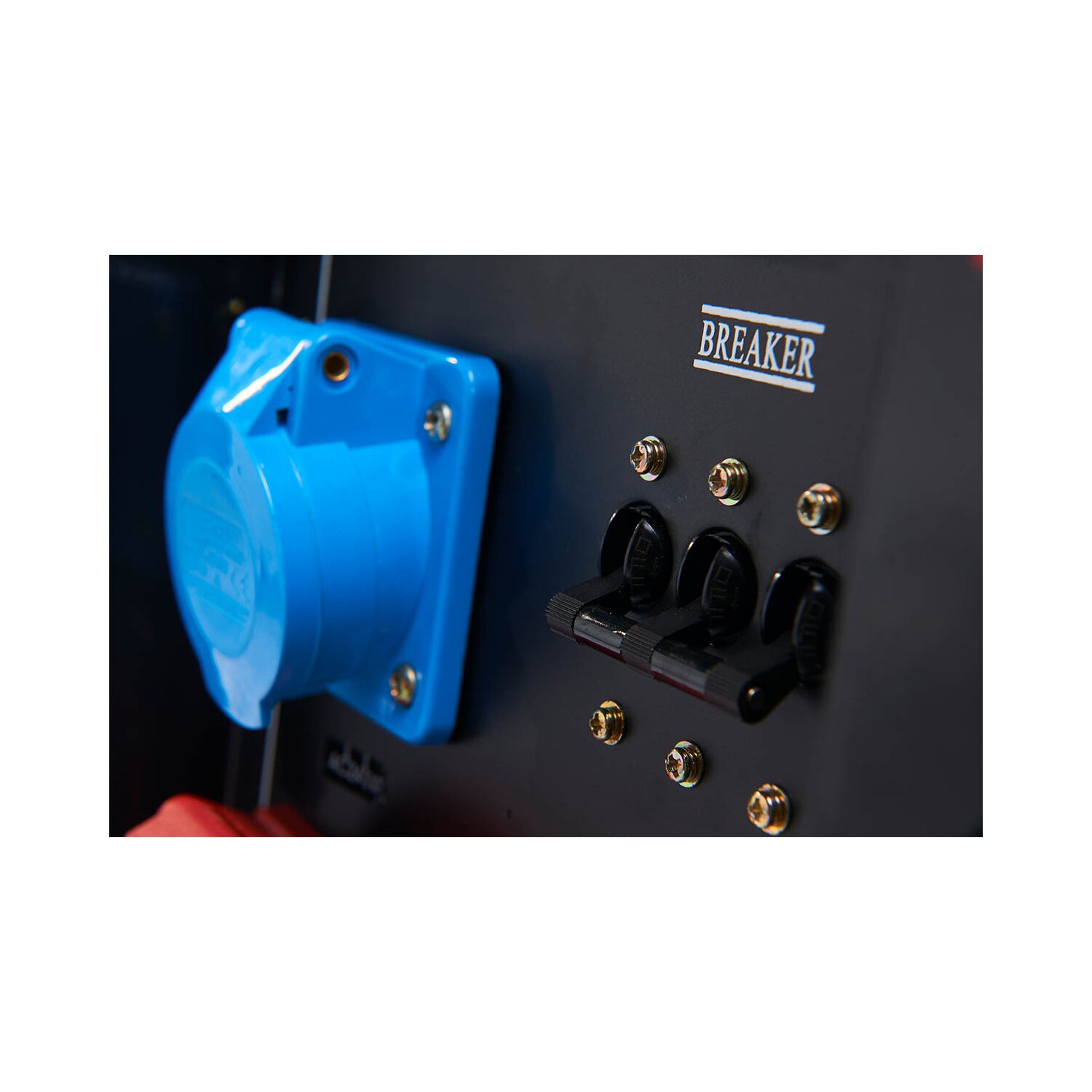

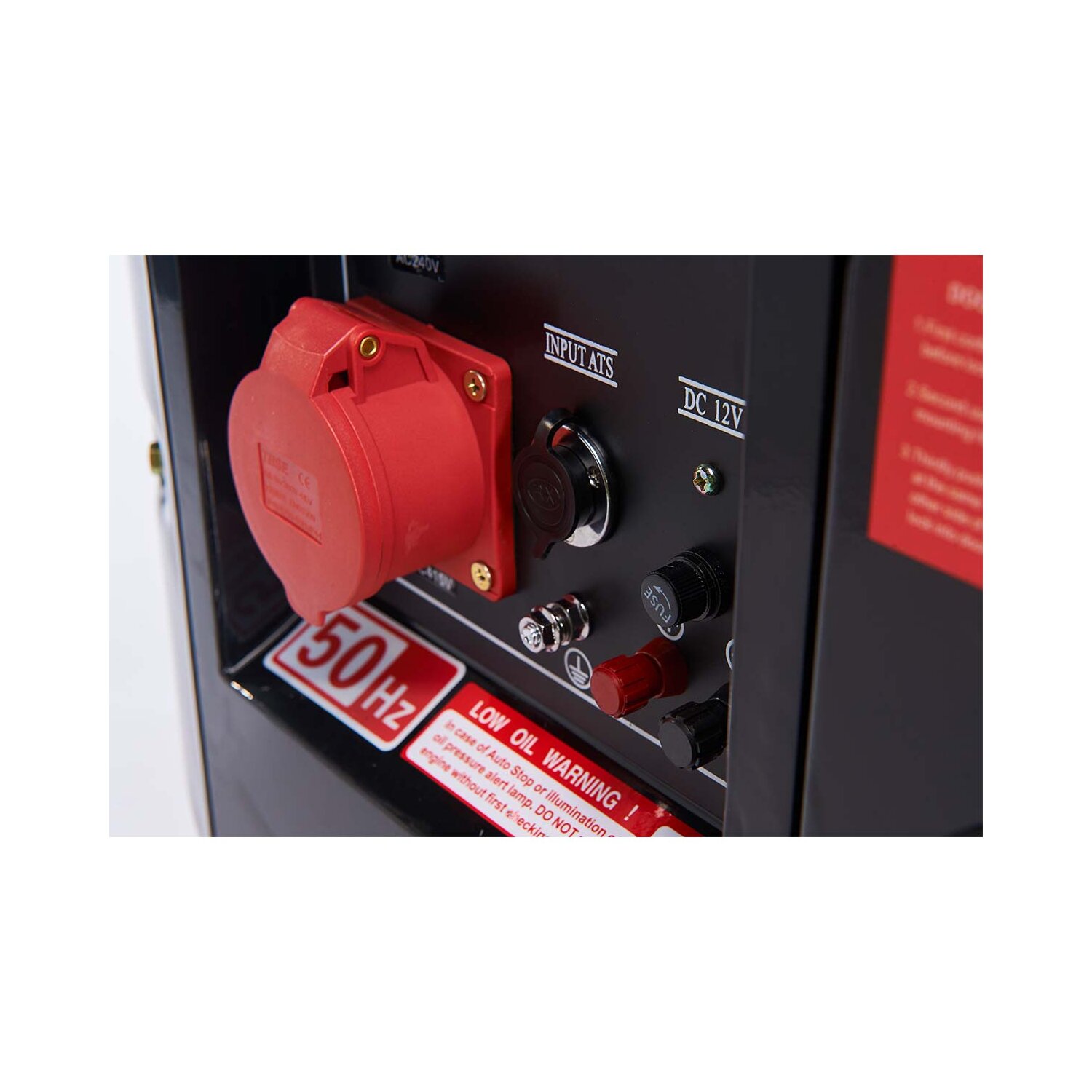

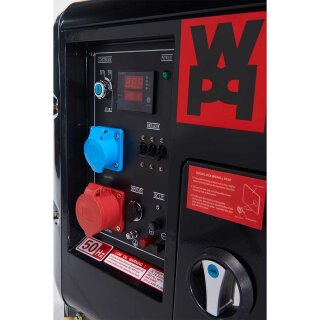

Fitted with 12v battery charging outlet and with 415v Three Phase and 240v Single Phase output sockets as standard as well as ATS Input Port for ATS panel 190102000010.

All data supplied on this item is referring to balanced load, if using unbalanced loads you need to check data on Equipment.

Features:

  • 415v Three Phase / 240v AC load
  • Up to 12 hours run time at 50% load
  • 68 dBA at 7m
  • 3 in 1 Intelli Volt Meter
  • Electric Key Start

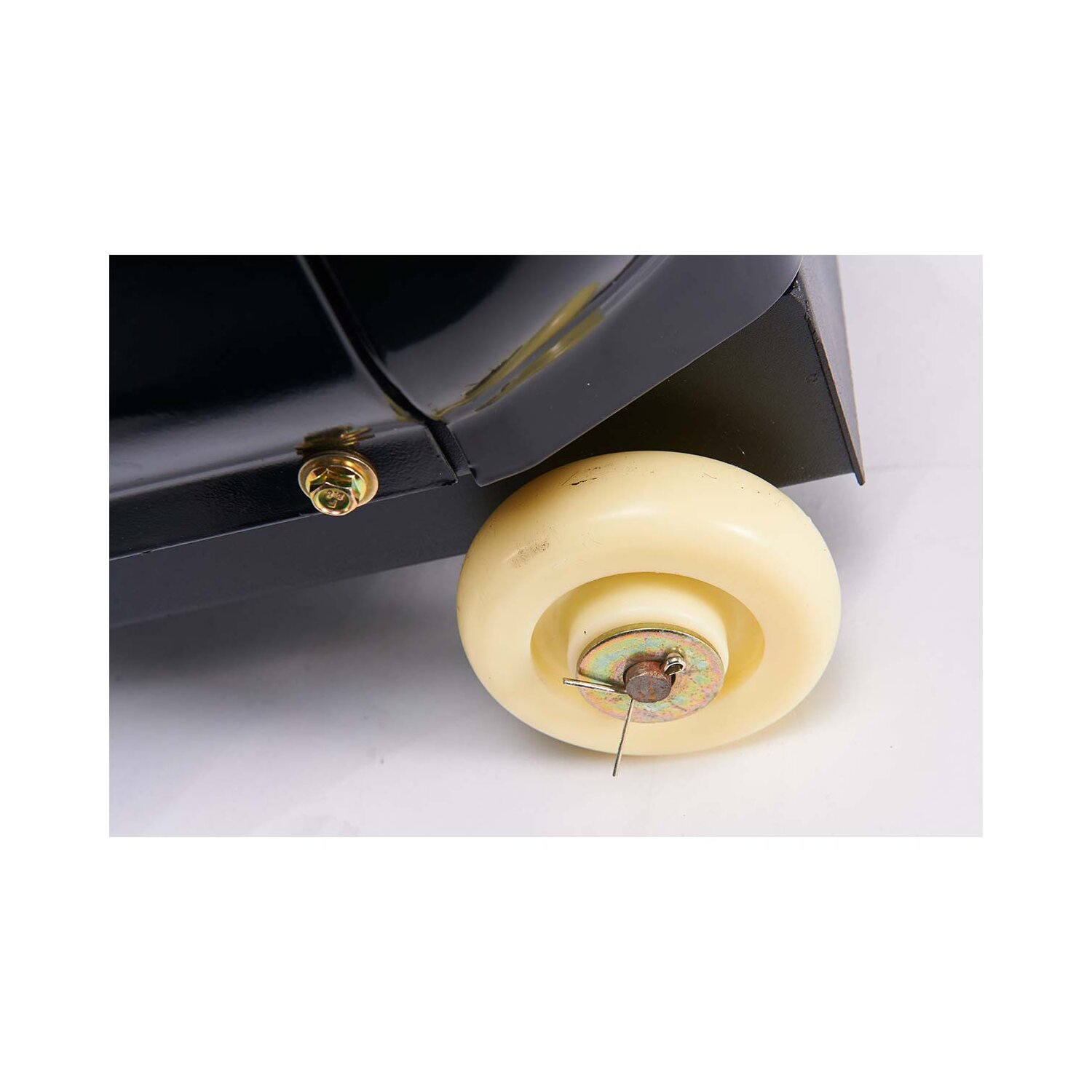

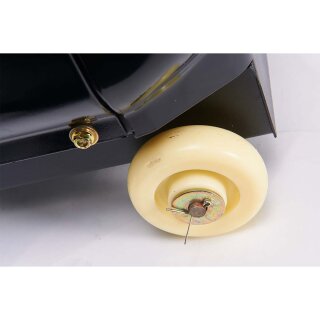

  • Wheels for easy portability
  • ATS Input Port



Please note: When running single phase off a three phase generator you will only receive approx 30-35% of the full output power as your socket is only running off one of the three phases available.



Model

WWLDG6500SV3-EU

Max. Watts

5.500

Rated Watts

5.000

AC Load

1 x 415V 16amp / 1 x 240V 16amp

ATS Input
Phase
Power Factor
RPM
Engine

Yes
Three
0.8
3000
186

Fuel Capacity

16 Litres

Oil Capacity

1.1 Litres

Start Type

Electric

Low Oil Shutoff

Choke Type

Automatic

Automatic

Noise Level @ 7m

68dBA

Dimensions L*W*H

(Fully Assembled) 89 x 59 x 73 cm

Weight

168kg (370lbs)

Operation at 50%

>12h

Overload Protection

Yes

AVR

Yes

Fuel Gauge

Yes

Voltmeter

Yes

Intelligauge

Yes

Electric Start

Yes

Certification

CE,EU Stage V, ISO9001-2000, GS,TUV



All specifications for this unit refer to the balanced load - if unbalanced loads are used, you must check compatibility.
* The unit is not capable of sloped load. The individual phases must be equally loaded.
** If the unit is operated on a three-phase alternator, you will only get approx. 30-35% of the full output power, as the socket is only operated on one of the three available phases.
On the CEE socket with 230V/16A, therefore, only one third of the output power (approx. 1,500 watts) can be called up.





Buy now exclusively from us at Seilwinden-direkt.de Diesel generators from WARRIOR!


Shipping weight: 150,00 Kg
Product weight: 150,00 Kg
