ITC POWER Diesel Stromaggregat 6500 Watt 230V

Item number: IPDG7800SE

Category: Diesel Stromerzeuger


1.699,00 €

including 16% VAT. , plus shipping

Shipping time: 5 - 8 workdays

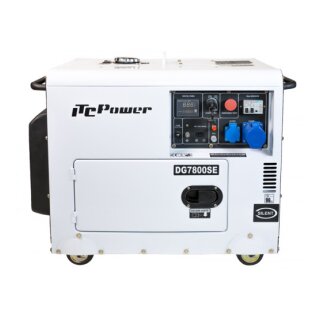

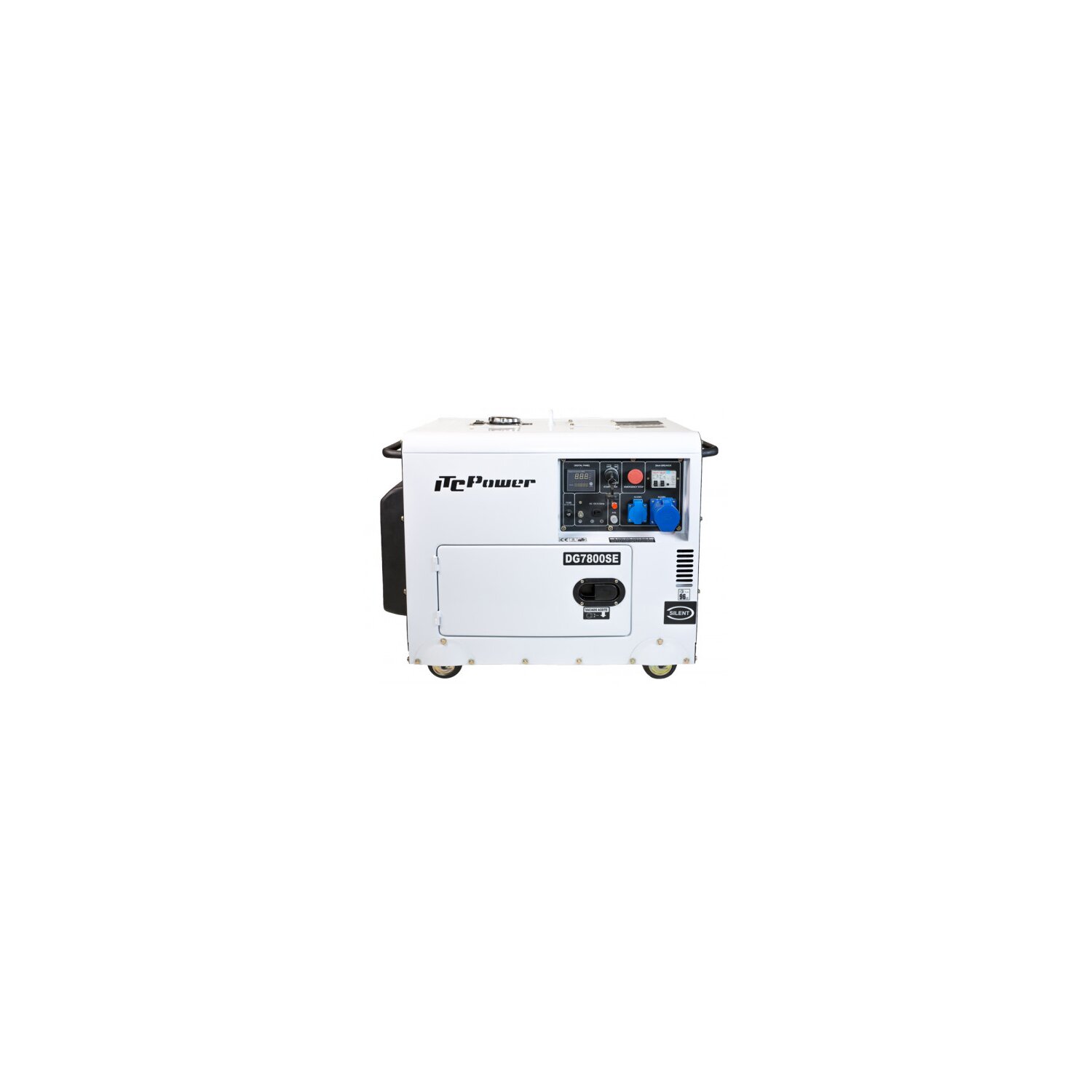

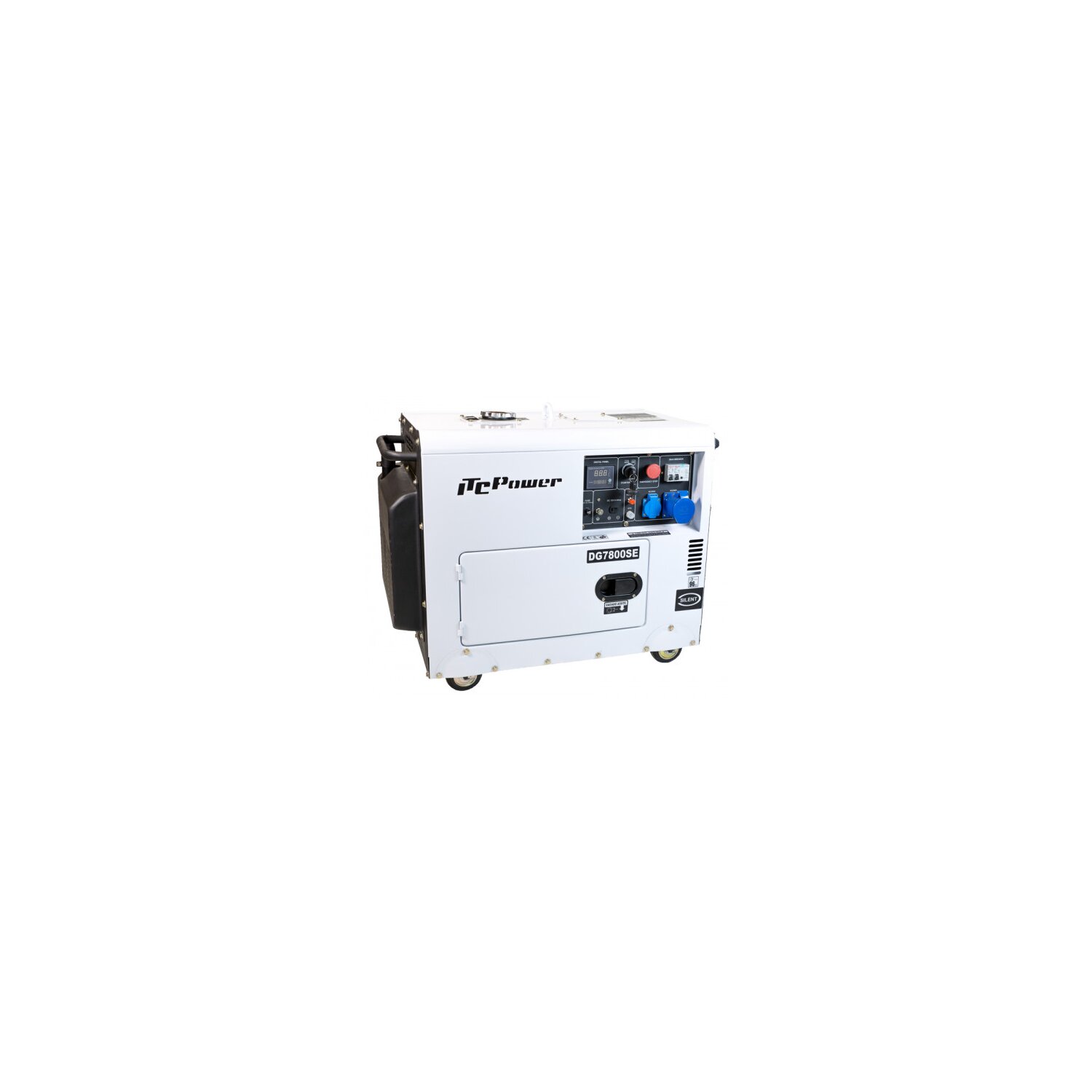

Power supply unit ITC-POWER 6500 Watt DG7800SE

  • Diesel
  • with AVR voltage regulator
  • with electric starter


Ideally suited for your construction site or for house security!


  • 4 stroke diesel engine with direct injection
  • Large tank
  • The cladding ensures a low noise level

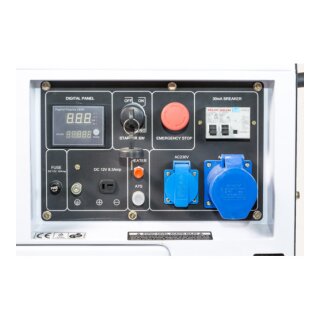

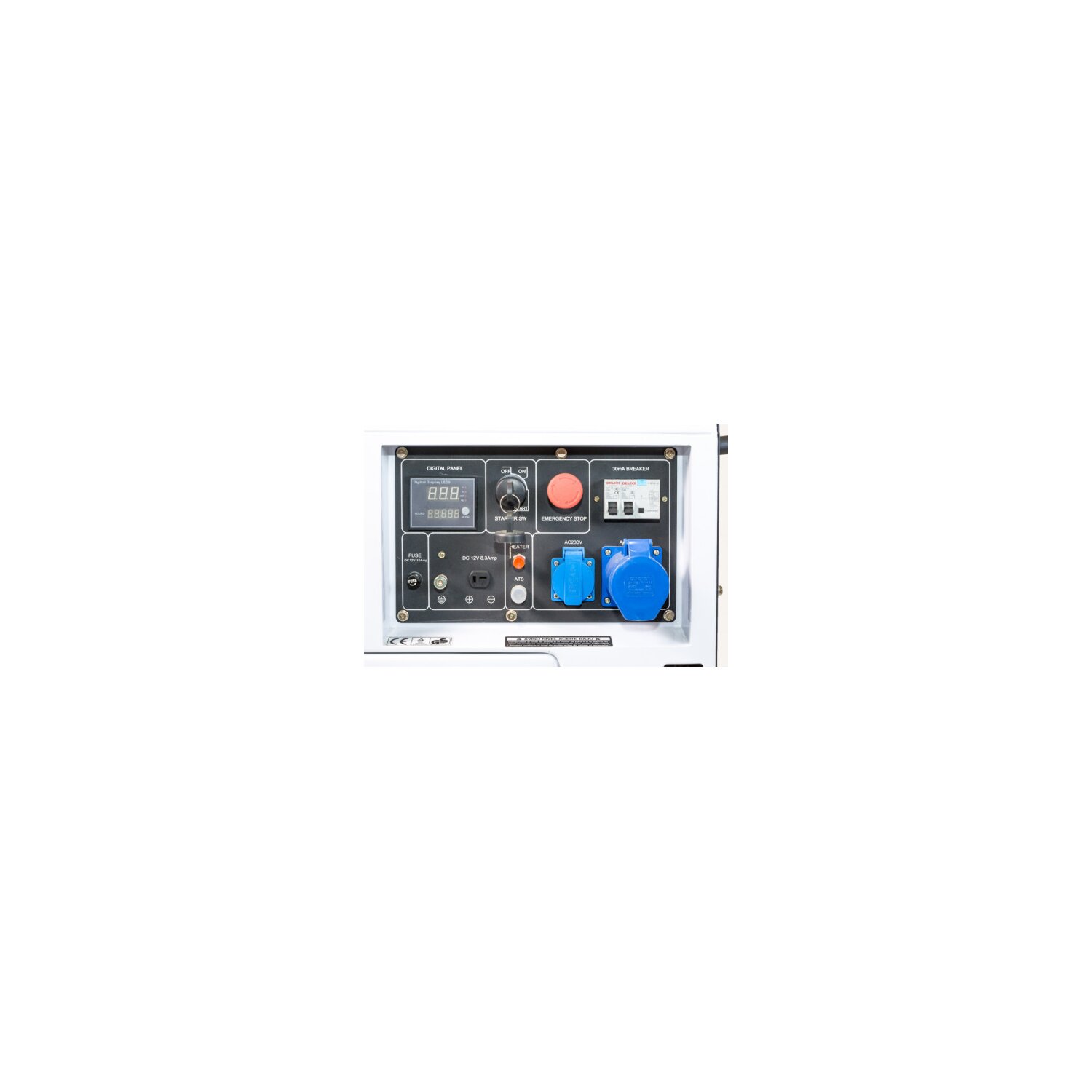

  • The digital display ensures many monitoring possibilities
  • overload protection
  • Oil shortage protection
  • LED5 display (KW, Volt, AMP, Hz, hour counter)
  • fuse with 30 mA for personal safety
  • 1 x 230 V 16 A socket
  • 1 x 230 V 32 A socket
  • earth protection
  • With ATS connection

AVR voltage regulator ensures constant voltage, so you can operate sensitive electronics

The 32 A socket allows you to draw the full power from one socket. Therefore this unit is well suited for larger current collectors or for house fuse protection.



Technical data:

  • frequency 50 Hz
  • voltage 230V
  • nominal power 6.0 kW
  • Maximum power 6.5 kW
  • Ampere 28 A
  • Display LED5
  • tank capacity 14 litres
  • Independent working time at 50% load 14 hours
  • Volume 72.6 dB at 7 metres
  • battery 36 Ah
  • motor D500E
  • Power of the engine 12,0 PS
  • displacement 418 cc
  • oil capacity 1.65 litres
  • Generator A6-1S
  • electric starter, battery included
  • AVR voltage regulator
  • speed 3,000 rpm
  • dimensions 920x520x760 mm
  • gross weight 167 Kg

The generator is supplied on wheels.

Options / Accessories:


  • ATS cabinet (Price: 249,00 €) This is used for automatic start in case of power failure.
  • radio remote control (price: 399,00 €)
  • 32AMP Adapter 230V
